Part Number: NHAPIC-3R20L24040DC / Vendor ID #: 104

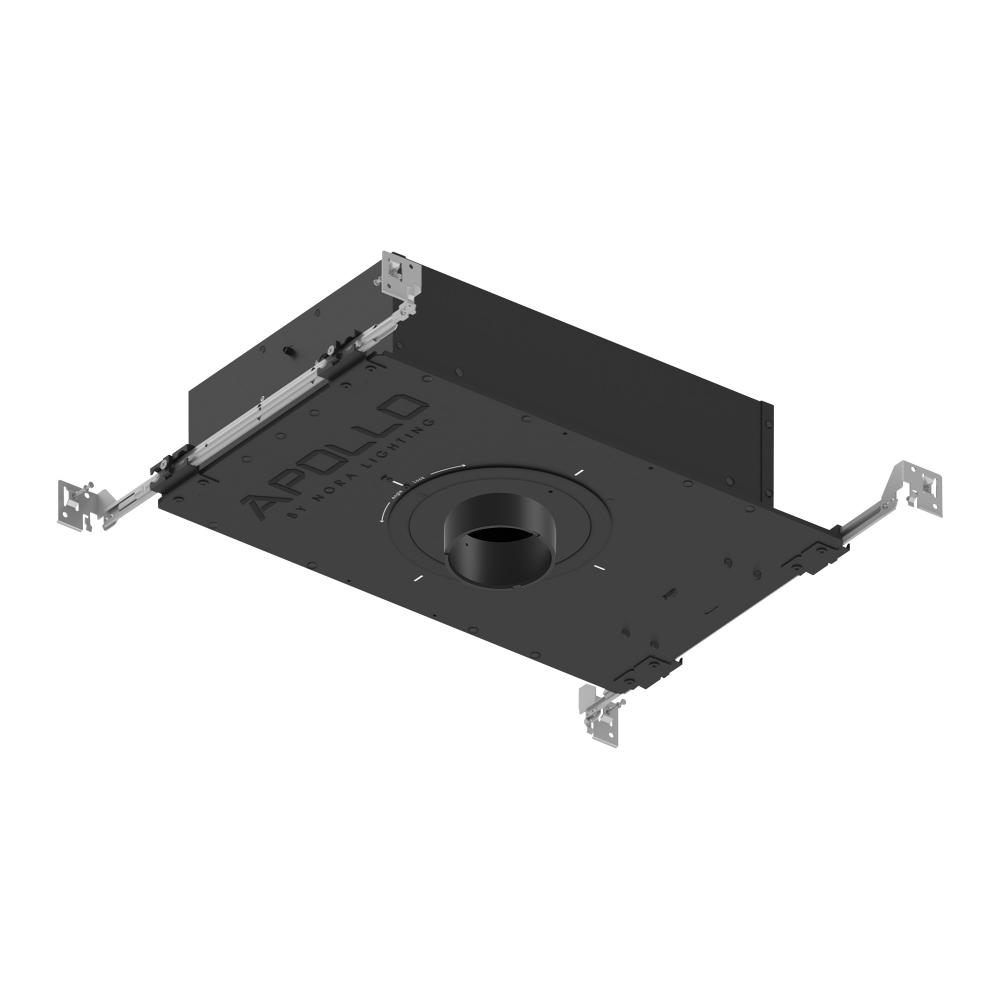

3" Apollo Round IC Air-Tight New Construction Housing w/ 1.625" to 2" Ceiling Collar,
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer may be Out Of Stock.
Dimensions
Height: 4.13"
Width: 17.13"
Info & Guides
CEC Substitute Item: NHAPIC-3R15L24040DC
CCT: 4000K
Lumens / Light Output: 1500lm
Specific Products: NHAPIC-3R20L24040DC
Apollo new construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Adjustable LED mechanism allows for 361° horizontal rotation and 45° vertical aiming. Optimized TIR optics directs the light through the center of the aperture for maximum efficiency and low aperture brightness.
Input Voltage: 120-277V
Lumens / Wattage: 1500lm / 15W
Color Temperature: 4000K
Color Rendering Index: 90+ CRI
Beam Spread: 38° Narrow Flood
Dimming: 0-10V
Ceiling Thickness: 1.625" to 2"
Compatible Trims: NAPF-3RDN, NAPF-3RPH, NAPF-3RWW, NAPT-3RDN, NAPT-3RPH, NAPT-3RWW
Listing: cULus Listed for Damp Locations (Wet locations when used with lensed trim)
Input Voltage: 120-277V
Lumens / Wattage: 1500lm / 15W
Color Temperature: 4000K
Color Rendering Index: 90+ CRI
Beam Spread: 38° Narrow Flood
Dimming: 0-10V
Ceiling Thickness: 1.625" to 2"
Compatible Trims: NAPF-3RDN, NAPF-3RPH, NAPF-3RWW, NAPT-3RDN, NAPT-3RPH, NAPT-3RWW
Listing: cULus Listed for Damp Locations (Wet locations when used with lensed trim)
Option:
Energy Star
Title 24
Category:
Recessed
Product Line:
AP01
Est. Shipping Wt.:
15
Length:
1.75
Lumens / Light Output:
1500lm
Ship Carton Height:
9
Ship Carton Length:
24
Ship Carton Width:
18
Weight:
8
CCT:
4000K
CEC Database:
Y
CEC Item Number:
NHAPIC-3* ** ** ** *** **** + NAP*-3******
CEC Substitute Item:
NHAPIC-3R15L24040DC
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
9
Master Box L:
24
Master Box Qty:
1
Master Box W:
18
Master Box Wt.:
15
Product Family:
Apollo
Safety Listing:
cULus
Wattage:
15W
